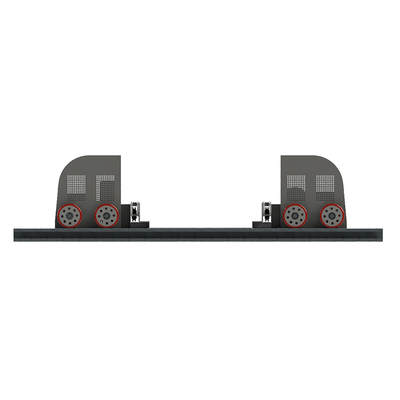

Automatic Manufacturer Mother Child Shuttle Mover for Automatic Storage Racking System

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	EBILTECH
Model Number:	EBIL-ZMC

Contact Now

Detailed Product Description

Capacity:	500KG,1000KG,1500KG, 2000KG	The Power Supply Mode:	Sliding Contact Line
Battery Parameters/voltage:	380 V	Mother Car Size:	L 2500 * H650mm W1298
Number Of Wheels (driver):	8 (4)	The Pallet Size:	1200 X 1000 Mm (as Needed)
The Pallet Load (including Pallet):	2000 Kg	The Level Of Walking Speed:	Light: 120 M/min. Full: 90 M/min
Conveyor Speed:	12 M/min	Positioning Accuracy:	Plus Or Minus 3 Mm
The Control Unit:	SIEMENS PLC 1200 Series	Scale:	Heavy Duty

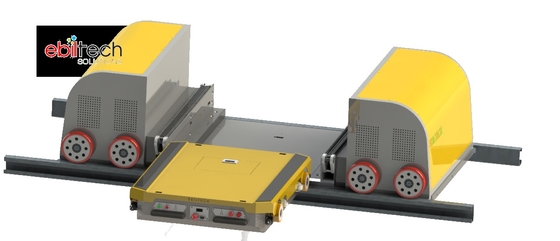

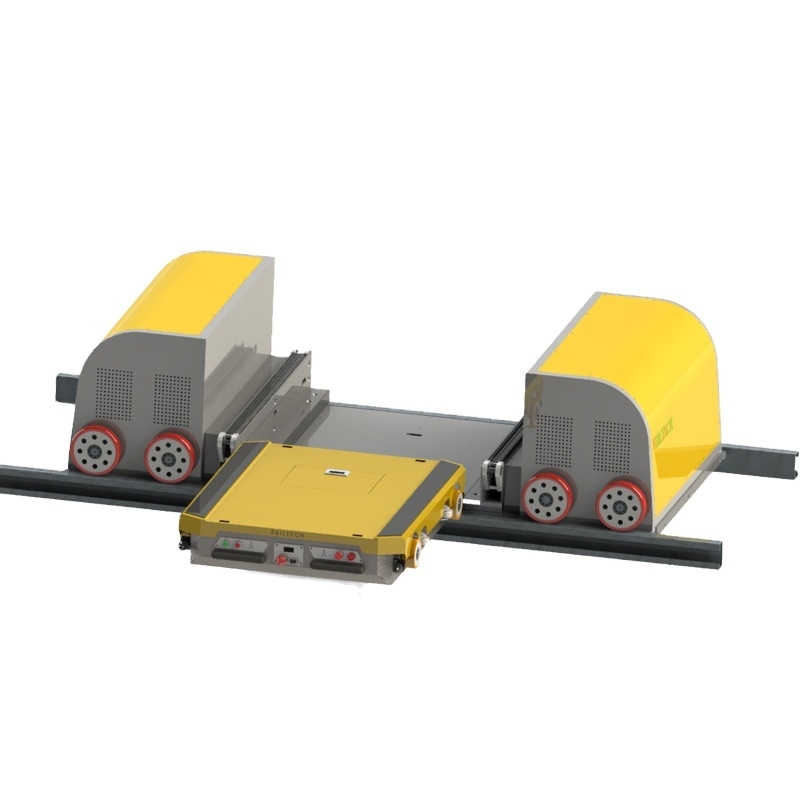

Primary-secondary Shuttle carrier solution

The Shuttle carrier solution is a full automatic and high density storage system which takes the shuttle as a core, it is consist of radio shuttle racks, longitudinal movement shuttle, lateral movement mother shuttle, vertical direction movement elevator, conveyor lines and so on. According to practical application requirements, in-out stock can choose the way of FIFO or FILO, shuttle and mother shuttle can one-to-one match or several-for-one match. With the adjustment of WMS, WCS, equipment scheduling soft management and the whole system to suitable for the single variety and large scale situation, such as food, drink, paper, etc.

Pallet size: L1200XW1200XH1000; weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long X 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high.

Advantages and Characteristics：

1. Modular design of equipment to achieve system automation;
2. Additional equipment in later stage, and expandable warehouse-in/out efficiency;
3. Out-of-stock mode: first in first out/first in last out;

· Flexibility, adaptability and scalability.
· Control.
· Customer service.
· Manage workflows.
· Integrate with any ERP.
· Profitability.
· Lower logistics overhead.
· Exact, high-speed picking.
· Automation of the flow of information and processes.
· Evolution.

The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material

handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.
Acting as a “hub”, the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material
handling systems and subsystems.

1.Q: Are you distributor or manufacturer?
A: We are professional and leading manufacturer for nearly 20 years.We produce and export high quality pallet racking ,Multi shuttle system and Rodio shuttle racking,ASRS which have a very high reputation among our customers. Our anual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
2.Q: What makes you different with others?
A: 1) We have more than 40 mechanical, electrical and software engineers. EBILTECH always attaches great importance to product innovation and R&D. It not only has its own research and development team, but also cooperates with domestic well-known research institutes, so as to continuously enhance the technical strength of the enterprise.Our independent research and development of WMS system and WCS system.We have more than 60 national patents.
2)Our Excellent Service
For a quick, no hassle quote just send email to us,We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
3)Our quick manufacturing time
For Normal orders, we will promise to produce within 20-30 days.
As a manufactoiy, we can essure the delivery time according to the formal contract.
3.Q: What is the installation and debugging services?
A: We have installation teams with rich overseas experience. For radio shuttle car, we will send engineers to the site for
debugging and training. For racking systems, we can installate by our own teams or appoint engineers to guide the operation.We have done many project in southease Asia,American, European.
4. Q:What is the MOQ can order?
A:Normally is one 20ft container, but large quantity comes with good price
5.Q: What is the payment?
A: T/T or LC
