Professional Manufacturer of Automated Smart Storage System Multi Shuttle Asrs Box Picking Shuttle Racking

Product Details:

Brand Name:	EBILTECH
Model Number:	EBIL-MS, EBIL-CSSHJ

Contact Now

Detailed Product Description

Type:	Automated Retrieval, Radio Shuttle Racking, Rail Guide Vehicle For Multi Shuttle Rack Path	Material:	Stee Wire, Steel
Feature:	Corrosion Protection, Corrosion Protection	Length Of Layers:	Customzied
Layer:	Customzied	Surface Treatment:	Powder Coated, Galvanized
Installation:	Multi-tier Racking Systems	Color:	Orange, Blue, Red, Green, Etc
Finishing:	Powder Coating, Galvanized	Capacity:	35KG
Depth:	20 Cartons	Weight Capacity:	50 Kg
Use:	Warehouse Rack	Special Feature:	Durable, Space Saving, Waterproof

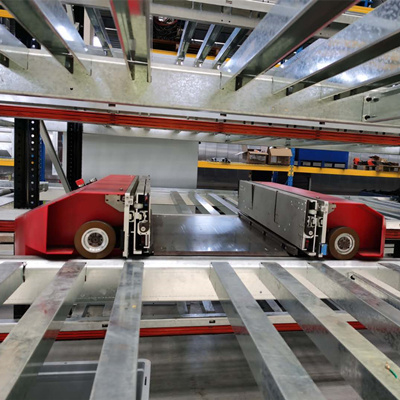

EBILTECH Multi shuttel system is an automated shuttle system for storage of small loads. The shuttle system is designed for applications where high throughput and excellent availability are essential, for example in Retail & E-commerce for returns handling, replenishment or buffer for order consolidation. The shuttle offers double to quadruple deep storage of totes, trays and cartons. EBILTECH Multi shuttel system is suitable for chilled storage environments. To reduce the number of aisles, the shuttle can be built up to 150 m long and 25 m high.

Multi Shuttle

* Exceptionally High Throughput Rates: Dual Cycle, Drive Through, and Tandem lift configurations — combined with high-speed shuttles and intelligent controls * High-Density Storage: The multi-depth, intelligent storage of varying size cartons reates outstanding space utilisation in ambient, chilled, or freezer environments. * Modular and Flexible:The system adapts to building configurations, including existing buildings with lower ceiling heights. Additional shuttles can be easily added to provide more roughput. * Efficient, Accurate, Reliable: EBILTECH Multi shuttle systems operate in an efficient “lights-out” environment. They ensure easy maintenance and maximum uptime.

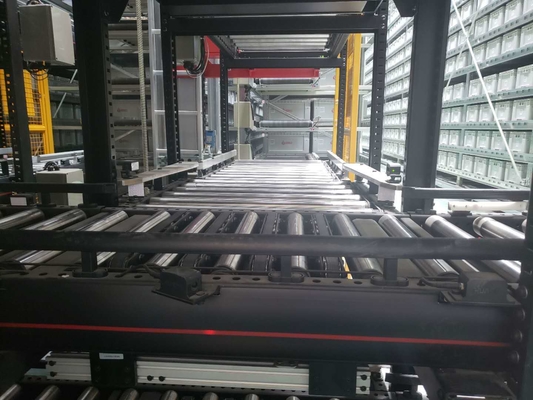

Roller Conveyors for Boxes, Totes and Bins

Increasing manipulation speed between areas. Low maintenance.
The distances within an installation can be covered by different transport devices, which are commonly combined with demanding
requirements in terms of functionality and frequency of each and every component of the system.
The use of driving mechanism and presence-detection systems enabled by mechanical or optical detection devices allows the boxes to
be moved under controlled conditions to the desired positions.

Goods to person

1. Inventory is received at decanting workstations where operators scan bar codes and transfer items into inventory totes.
2. Inventory totes are conveyed and automatically stored in the high-density storage buffer.
3. When needed, inventory totes are retrieved and directed to picking stations.
4. Lights and graphical instructions direct operators to pick the required items from the inventory totes and place them into
order containers.
5. When an order container is complete, it is automatically routed to the packing area.
6. Inventory totes return to the high-density storage buffer.

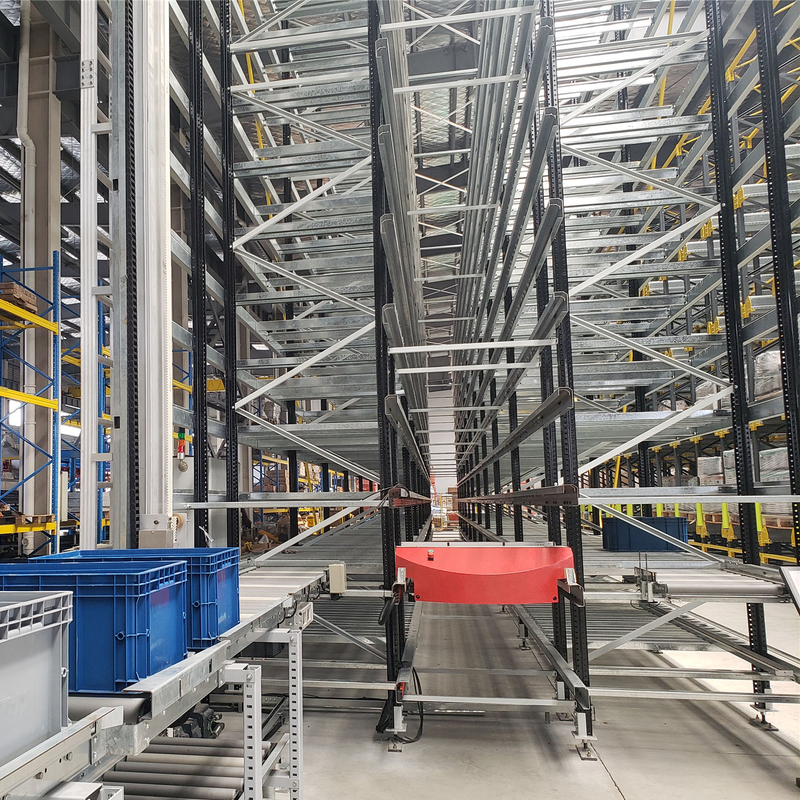

Consists of a racking structure with an integrated shuttle track system, with multidirectional microshuttles transport product bins between storage locations in the rack and stations that can be used for picking and replenishment. A built in lift allows
shuttles to move up and down between rack levels and to the available stations.
Software controls shuttle traffic, maximizing throughput and minimizing order lead times. The user-friendly interface shows
real-time data of the entire system, providing an overview of all every component.

1.Q: Are you distributor or manufacturer?
A: We are professional and leading manufacturer for nearly 20 years.We produce and export high quality pallet racking ,Multi shuttle system and Rodio shuttle racking,ASRS which have a very high reputation among our customers. Our anual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.

2.Q: What makes you different with others?

A: 1) We have more than 40 mechanical, electrical and software engineers. EBILTECH always attaches great importance to product innovation and R&D. It not only has its own research and development team, but also cooperates with domestic well-known research institutes, so as to continuously enhance the technical strength of the enterprise.Our independent research and development of WMS system and WCS system.We have more than 60 national patents.
2)Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-25-52757208, we will answer your questions immediately.
3)Our quick manufacturing time
For Normal orders, we will promise to produce within 20-30 days.
As a manufactoiy, we can essure the delivery time according to the formal contract.
3.Q: What is the installation and debugging services?
A: We have installation teams with rich overseas experience. For radio shuttle car, we will send engineers to the site for
debugging and training. For racking systems, we can installate by our own teams or appoint engineers to guide the operation.We have done many project in southease Asia,American, European.
4. Q:What is the MOQ can order?
A:Normally is one 20ft container, but large quantity comes with good price
5.Q: What is the payment?
A: T/T or LC
